sd Series pump suction diffusers

FSI Suction Diffusers incorporate the functions of a strainer, flow straightener, elbow and pipe reducer in one compact unit. Standard units include a quick release cover for easy cleaning and a 1/8" stainless steel perforated screen with a 20 mesh liner for startup. A wide variety of optional screens, mesh liners, covers, materials and other custom options are available. FSI Suction Diffusers are available in cast iron configured to replace a standard 90° elbow as well as in fabricated carbon steel or stainless steel customized to suit your installation with end connections 2" x 1-1/4" up to 36" x 36".

• Size Range: 2" x 1 1/4" (50mm x 32mm) to 36" x 36" (600mm x 600mm)
• Available Materials of Construction: Carbon Steel, Stainless Steel
• Features: Filtration down to 40 microns Large diffuser screens Long and short neck versions are available Cast and fabricated construction.
• End Connections: Flat Faced, Raised Face, Butt Weld, VICTAULIC END.
• Applications: Process Industry, Power Industry, Chemical Industry, Oil and Gas Water and Waste, Metals and Mining, Pulp and Paper

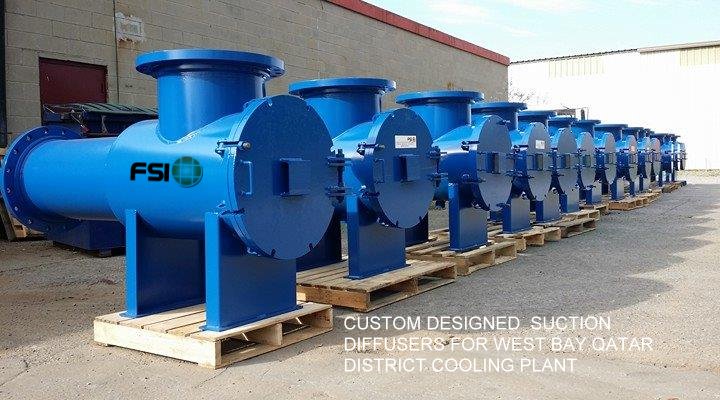

We have supplied as large as 42X36 suction diffusers to many customers in the Middle East and Asia.

SUCTION DIFFUSER SD24X24 MADE FOR HALIFA INTERNATIONAL STADIUM/ ASPIRE ENERGY CENTER IN DOHA, QATAR

 QUESTIONS OR  WANT TO DISCUSS SPECIFIC APPLICATION OR NEED A QUOTE PLEASE EMAIL US

info@flowsolutions.us

1-855-788-2468 / 1-716-343-3423, 1-905-330-3490(International)

CLICK HERE TO VIEW MORE IMAGES OF OUR SUCTION DIFFUSERS

DOWNLOAD THE DATA SHEET / SUBMITTAL OF OUR STANDARD SUCTION DIFFUSERS.

OUR FIRST LARGE SUCTION DIFFUSER PROJECT WAS FOR PALM JUMEIRAH DISTRICT COOLING PLANT IN YEAR 2005, SINCE THEN WE HAVE SUPPLIED TONS LOAD OF SUCTION DIFFUSERS FOR PROJECTS IN UAE, OMAN, QATAR AND SAUDI ARABIA
